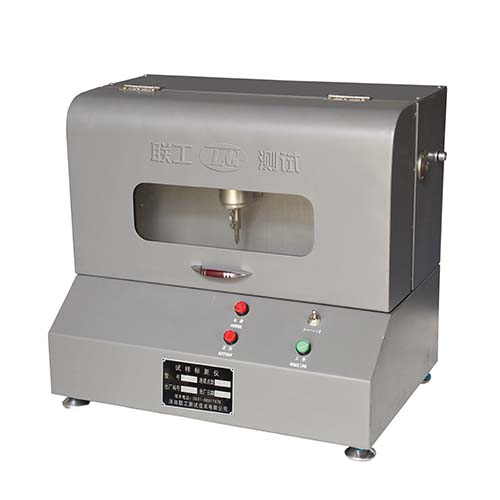

Gauge Meter (Striking Machine)
  • Gauge Meter (Striking Machine)

Gauge Meter (Striking Machine)

Gauge meter(striking machine) can meet customers' different needs of gauge, which is the necessary auxiliary instrument of laboratory.  DB-30 gauge meter is our company patent.

Appliction:

Gauge meter(striking machine) can meet customers' different needs of gauge, which is the necessary auxiliary instrument of laboratory.  DB-30 Type Power-driven Gauge Length Meter (Power-driven Striking Point Machine) is the special equipment which is designed and made according to stipulation in national standard GB/T228-2002. This machine adopts high-precision ball screw to locate correctly and uses import transduser to collecting rotation signal to drive high-frequency electromagnet to strike point synchronously. Gauge length is correct, high-efficient and easy to operte. It is the necessary matching equipment for labs.

Technical Parameter:

Model

DB-30

DX-400

Control type

Electric

Manual

Point space

5mm/10mm(adjustable)

10mm

Striking point number each time

Single point

40

Longest gauge

300mm

400mm

Dimension(L×W×H)

460×315×450mm

490×200×400mm

Weight

50kg

30kg

Characteristic

Electric control, high precision ball screw positioning precisely. high efficiency, easy to operate, product precision 0.05mm.

Many continuous points, easy and quick.
